NISBAU [NOMAS] 🇪🇬

BEST IN class for mobility

DESIGNED IN GERMANY, MADE IN EGYPT

[NOMAS] IS A FULLY MOBILE CONCRETE MIXING PLANT, WHICH IS IDEAL FOR FREQUENT RELOCATION DUE TO ITS COMPACT AND ROBUST DESIGN

Offering the perfect start with an output of 60 m³ / h.

BEST IN CLASS ACHIEVEMENT

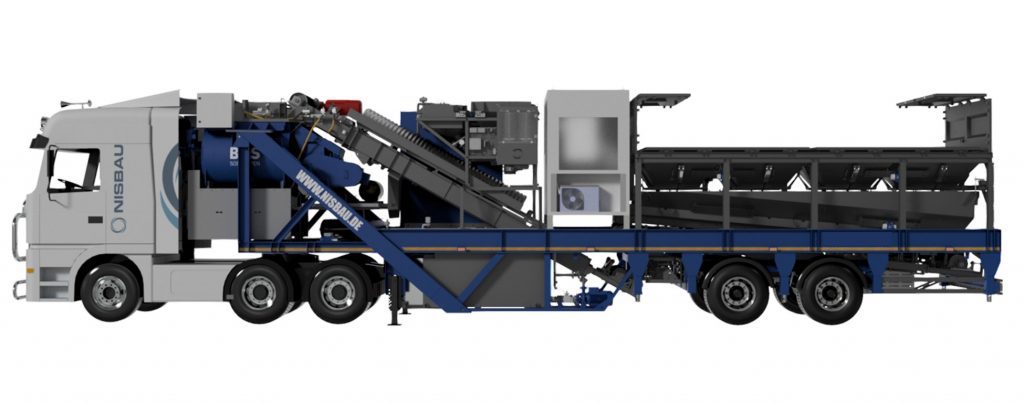

[NOMAS] is a fully mobile concrete batching plant based on the [EUROMIX] 60 with developed modifications to withstand the different working conditions. The transport takes place via only one semitrailer truck which emphasises the fully mobile character.  The construction and dismantling can be realised in just two days. Coupled with a footprint of only 250m², this mixing plant is suitable for short-term projects with limited space. Easy handling, reliability and robustness are further features that this mixing system brings. The twin-shaft batch mixer generates a consistently high mixing homogeneity in a short time.With a batch size of up to 1.25 m³, an output of 60 m³ / h is possible. The optimal arrangement of the mixing tool in conjunction with a powerful powertrain lead to consistently high. The [NOMAS] stands for a robust, sophisticated and state-of-the-art mixing system, which is characterised by high efficiency and longevity stands out. Verifiable weighing systems and a PTB-certified control system complete the package. To prevent corrosion, the system is almost completely galvanized. This ensures the value retention even after many years of use. In addition to the high quality of workmanship only well-known and proven products are used, which meet the requirements and standards.

EASTERN CONCRETE UK

THE BEST MOBILITY INTERNATIONALLY

INDIVIDUALLY CONFIGURABLE



ONE DAY ASSEMBLY



MOUNTED WITH TRUCK



REMOVABLE CONTROL CABIN



SINGLE TRANSPORT UNIT



FULLY MOBILE

Foundation Free

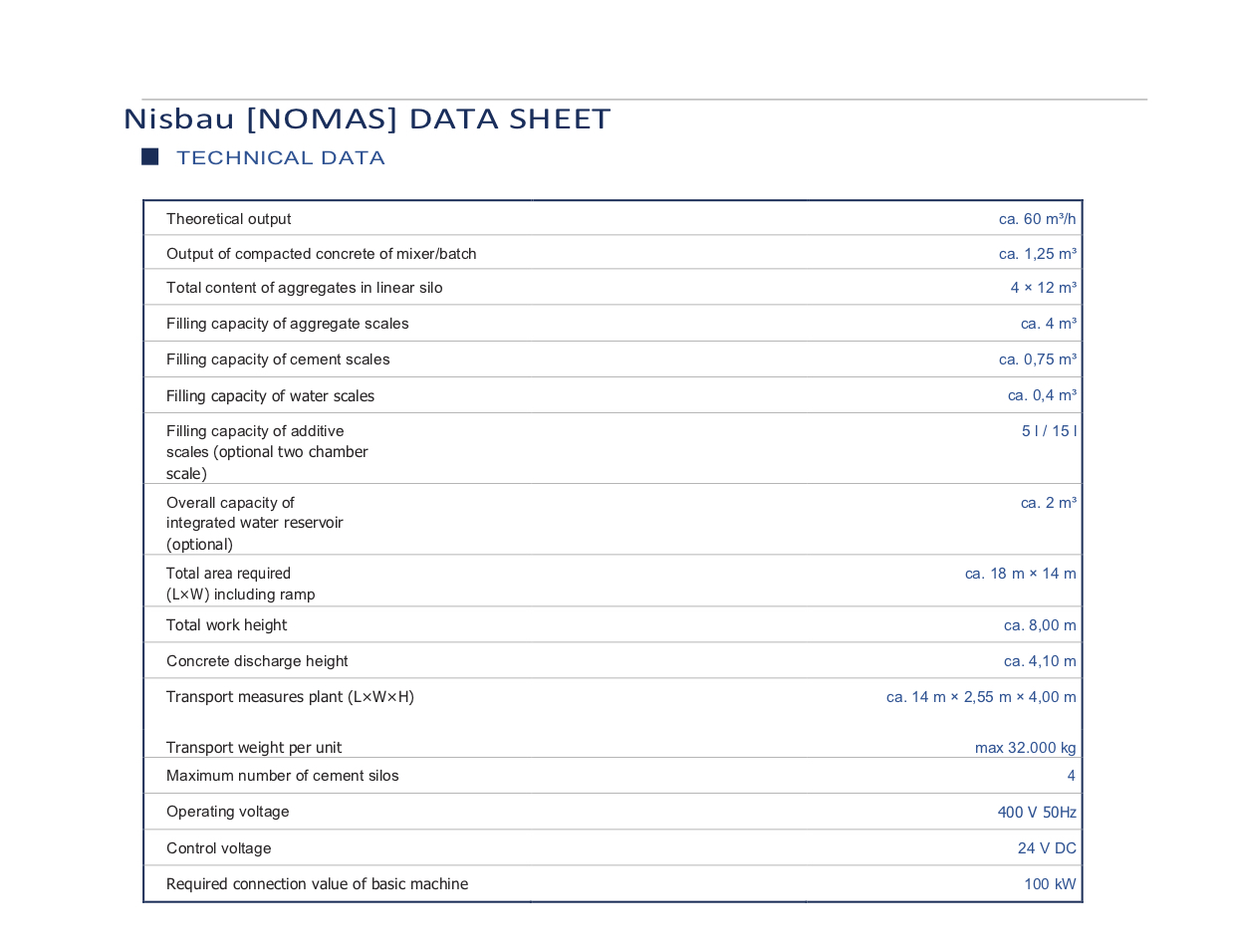

Technical Data Sheet

OPTIONS

SILOS WITH MOBILE FOUNDATIONS

AGGREGATE STORAGE WITH MOBILE FOUNDATIONS

AGGREGATE STORAGE WITH INTEGRATED RAMP SYSTEM

STANDARD SILO

TURBO PREHOPPER SYSTEM

MOBILE INCLINED CONVEYOR BELT

BHS PERFORMANCE MIXERS

BHS DKX Twin-Shaft Batch Mixer

Twin-Shaft mixing technology is suitable for all formulas and offers a wide range of benefits. The mixing technique has a significant effect on the quality of the mixture and the economic efficiency of the production process.Furthermore, mixing results are consistent and reliable, and this is  thanks to the proven design and arrangement of the mixing tools,  consistent homogenous mixtures batch after batch in less time is achieved by this. Maintenance-friendly and Robust design;

CAPACITY



60 CBM,0m³ Mixer

MADE IN GERMANY

MIXING CONCEPT

$

GEN 3D

Generation 3D, circular three-dimensional pattern for rapid mixture of batch ingredients

$

TURBULENT OVERLAP AREA

Intensive material exchange in the turbulent overlap area of the two mixing circles

$

ENERGY CONVERSION

Optimal conversion fo the input energy into intensive relative movements of the mixtures

$

FREE FLOW MOVEMENT

Rapid movement of all the materials throughout the mixer during the entire mixing process

$

The Benchmark in mixing technology

Rapidly producing mixures with consistently high levels of homogenity.

EFFICIENCY

$

Rapid, optimal suspension of cementitious materials



$

CEMENT CONTENT REMOVAL

$

GUARANTEED UNIFORM AND FAST DISTRIBUTION

of admixtures and additives throughout the mixture

$

OPTION FOR SMALL BATCHES

From 10% of nominal filling level, creating the perfect size batch

$

FUTURE-PROOF

Design allows for modern concrete formulas
