VERTICAL SILO SYSTEM

VERTICAL SILO SYSTEMS

PROVIDE A SIMPLE AND COST-EFFECTIVE OPTION FOR STRONG DIFFERENT BINDING AGENTS AND INCORPORATING THEM IN MIXING PROCESSES

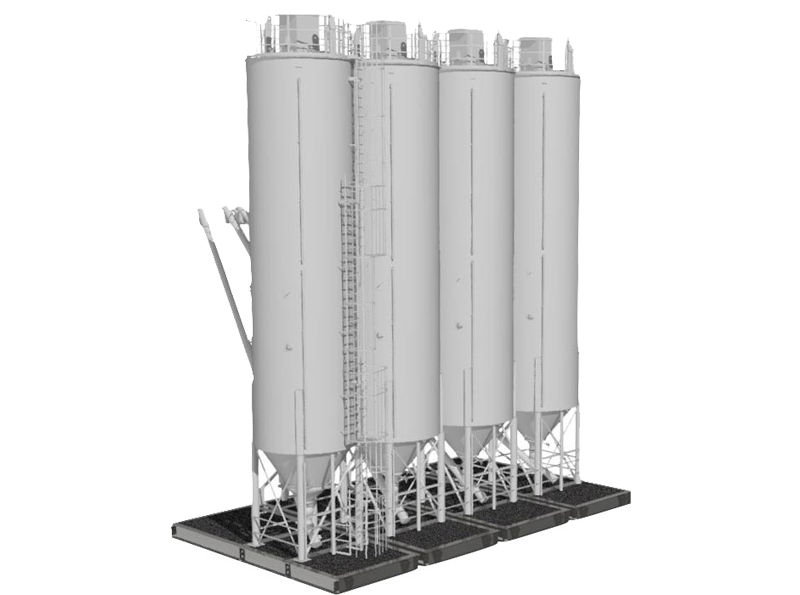

Nisbau Mobile Foundations

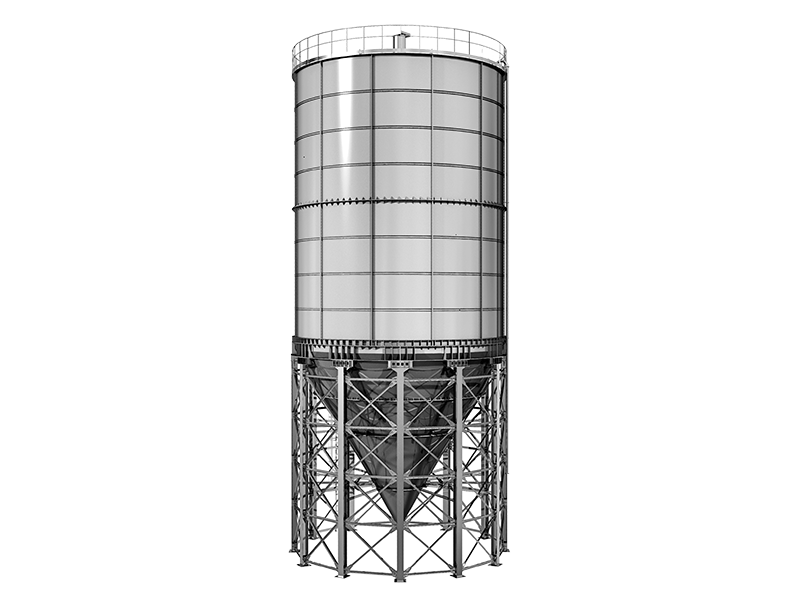

Nisbau Mobile Foundations modular bolted silos are provided primarily for the storage of large quantities of bulk goods such as stones, gravel , ballast, pea gravel or soil. These storage units are also used as cement terminals in ports, railway stations and in large dry mixer plants.

All fittings that are found in standard silos are also deployed with the Nisbau Mobile Foundation system.

OPTIONAL EXTRAS

Filter Systems (GREENMOVEMENT)

Every silo is fitted with a filter system.While fitting, this ensures a reduced value for emissions coupling with (< 20mg/Nm³)

The filter systems have an integrated cleaning feature. Using compressed air, the absorbed cement dust is fed back from the filter elements to the silo. As an optional extra a vibratory shaker can be installed.

High-quality , flexible & versatile in use

In order to ensure adequate protection against corrosion caused by weather conditions, a part of the steel construction is glavanised. Thanks to the simple construction and design even large depots can be erected for diverse materials. This system can be further expanded in order to erect a filling station from a depot.

Measuring Systems

Measurement systems play a significant role in a cement silos under conditions of daily use.This includes systems that acquire the values of the limit level and the filled level. This can be done in the basic configuration in the form of full and dummy indicators and can go up to continuous measurement with radar/microwave.

The measurement systems play a supervisory role while fitting.In addition they interrupt the filling operation in case of limit value acquisition(closing the pinch valve) and indicate visual (flash-light) and accosting (hooter) warnings. As measurement indicators they provide information about the filled level in the cement silo. Thus, deliveries of binding agents may be initiated on time. This is a significant contribution towards minimising production bottlenecks

Standard Silos are also available upon request, furthermore there are no differences either in the filter system or the measurement technology

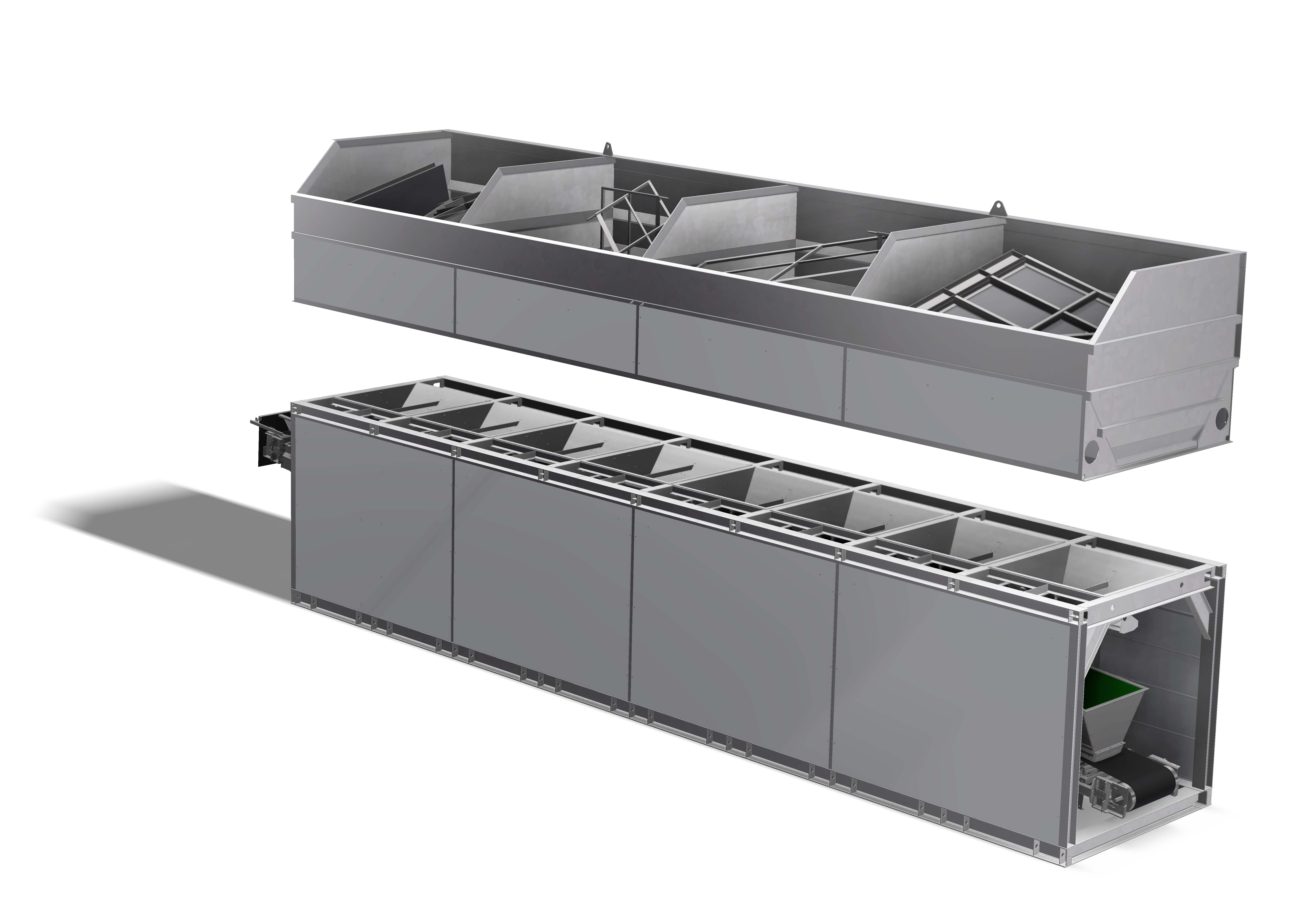

NISBAU AGGREGATE [Storage]

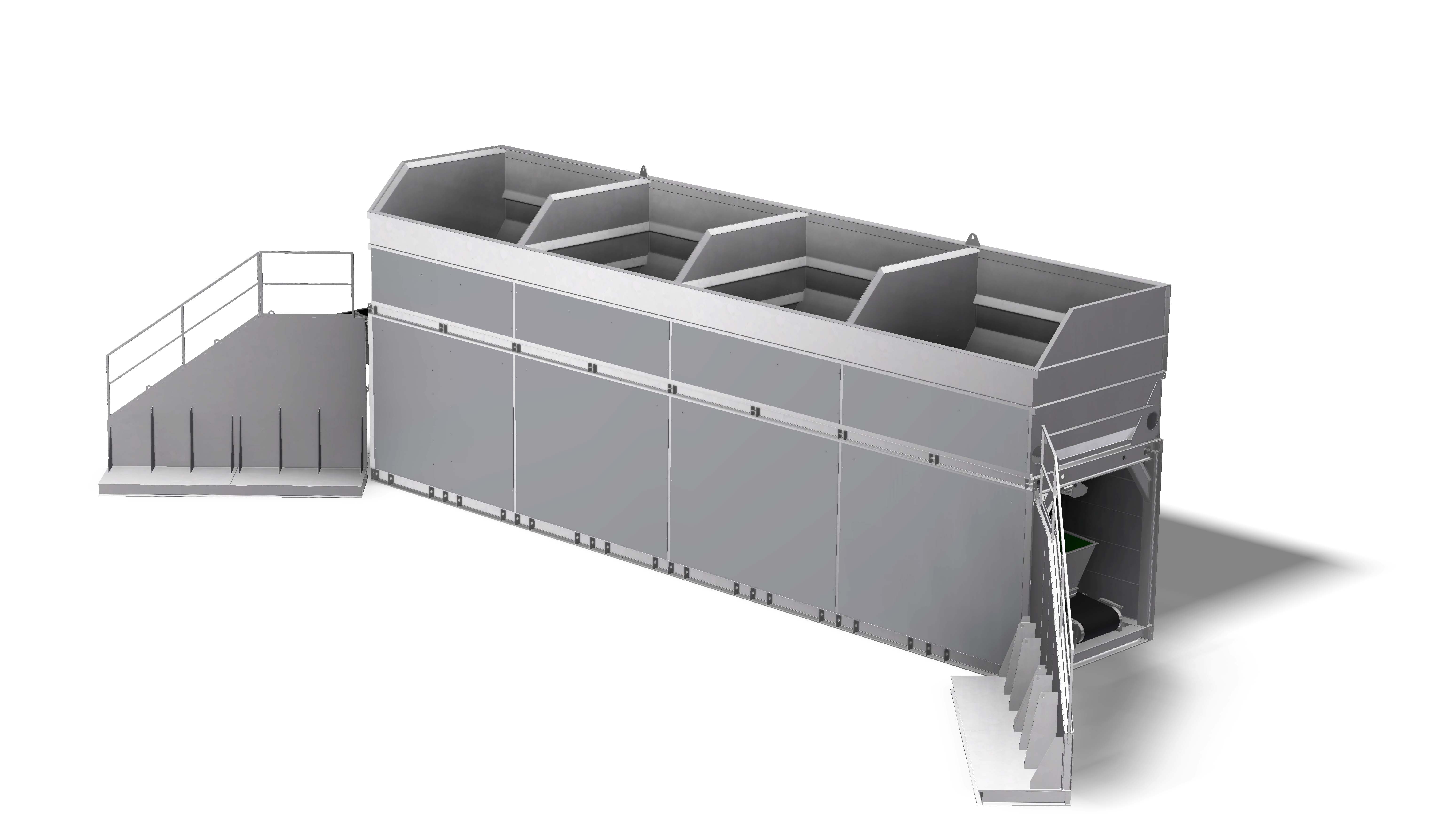

WITH optional INTEGRATED RAMP

ROBUST – FULLY MOBILE – MODULAR – INDIVIDUALLY CONFIGURABLE



FOUNDATION FREE INSTALLATION



CHAMBERS

3-6

.

Volume

180 CBM

,

CONVEYOR BELT SYSTEM

800-1200.00 mm



Plug and Play

Control System

Our Nisbau control system is a functional, stable and easy to handle system that optimally controls and monitors every production step. An advanced, universal system, designed and developed for the highest demands in the field of concrete production.

The XXX system allows the manual and automatic control of the processes in the concrete batching plant. It is composed of the administration software XXX, plant visualisation program Visu-Win, the stand-alone batching computer WD-A, and a recovery set allowing for full data recovery. Thanks to the modular structure, the software allows you to build a plant control that is tailored specifically to your needs. Only the hardware and software modules necessary for the production process are compiled.

Batching Computer WD-A

The WD-A is a computer-controlled batching system which controls the batching of the mixture and the mixing procedure independently of the administrative computer TB-WIN SQL.During ongoing production , the operator can continue working with the software. The mixer plant is displayed as a diagram on a second 19” screen.

DATA ENTRY MANAGEMENT

Raw Material
Customers
Contractors
Vehicles
Equipment set up
Recipes reporting

PRODUCTION CONTROL

Production scheduling
Production manager
Scada Visualization
Manual controls
Chart recording

PRODUCTION DATA MANAGEMENT

Production databases
Extensive reports
Statistics
Excel exportable
Web based reporting

CUSTOMER DOCUMENTATION

Order reports
Delivery notes

.



EASY OPERATION OF THE PLANT

}

LIVE MOBILE FEED

Live status overview of your plant with NISBAU™ software technology



CYCLE COUNTERS

For all drives

Q

ERROR MESSAGES

are displayed in addition to sound alarm and lights.



MAINTAINANCE MODULE

All engines, valve and limit switches are monitored for minimal downtime in repairs



COMPATABILITY

NISBAU SOFTWARE SYSTEM IS COMPATIBLE AND CAN BE INSTALLED IN ALL TYPES OF BATCHING PLANTS, including competitor plants.

STATISTICS OUTPUT

ORDER PROCESSING

$

All statistics can be output for any time period

$

Test Cube statistics by cement type and individual recipe

$

CUSTOMER, CONSTRUCTION SITE, AND VEHICLE STATISTICS

$

MIXING LOGS

Statistics for every single batch, including order data.

LOG FILE: All processes of the system are reordered and written to a log file.

$

RAW MATERIAL CONSUPTION STATISTICS

With administration of material outputs, comparison of measure set point values with difference equation

$

PRODUCTION STATISTICS

Individual orders can be selected, this includes all batching components which are visualised with measure set point values, manual batching, moisture of additives and times, when the mixing has started and discharged in the mobile mixer

$

PRE PRINTING OF DELIVERY NOTES

$

SELECTION FOR PRESSURE ACCORDING TO ZTVK

$

ORDER PROCESSING OF PRIMARY ORDERS AND PRE-BATCHED ORDERING PARTY

$

ORDERS WITH VISUALISATION OF ALL BATCHING COMPONENTS

$

Automatic overrun connection for every component

$

DELETION OF ORDERS AFTER COMPLETION, INDIVIDUALLY SELECTABLE OR VIA CONFIGURABLE TIME IN DAYS (max 9999 days)

Additional features

Post-processing of delivery notes
Log printout
All logs can be saved to an external drive, CD, or USB.
All operator functions are logged along with the system faults for subsequent plant inspection
NSIBAU MULTILINGUAL System ™
Invoice printout on delivery note (cash sales)
Remote data transfer
Billing interfaces
Drill-down functions

DATA EXPORT

Data export in ASCII or Excel format for analysis.

DATABASE

My SQL Server
Server-client application
Independent backup system

Recovery Set

For restoring all software packages and data bases quickly and easily the recovery can be managed by the customer without any problems. The recovery set compromises of

Recovery CD for restoring all software packages with manual
Acronis Truelmage software package and manual
USB stick storage medium with min 1 GB capacity
